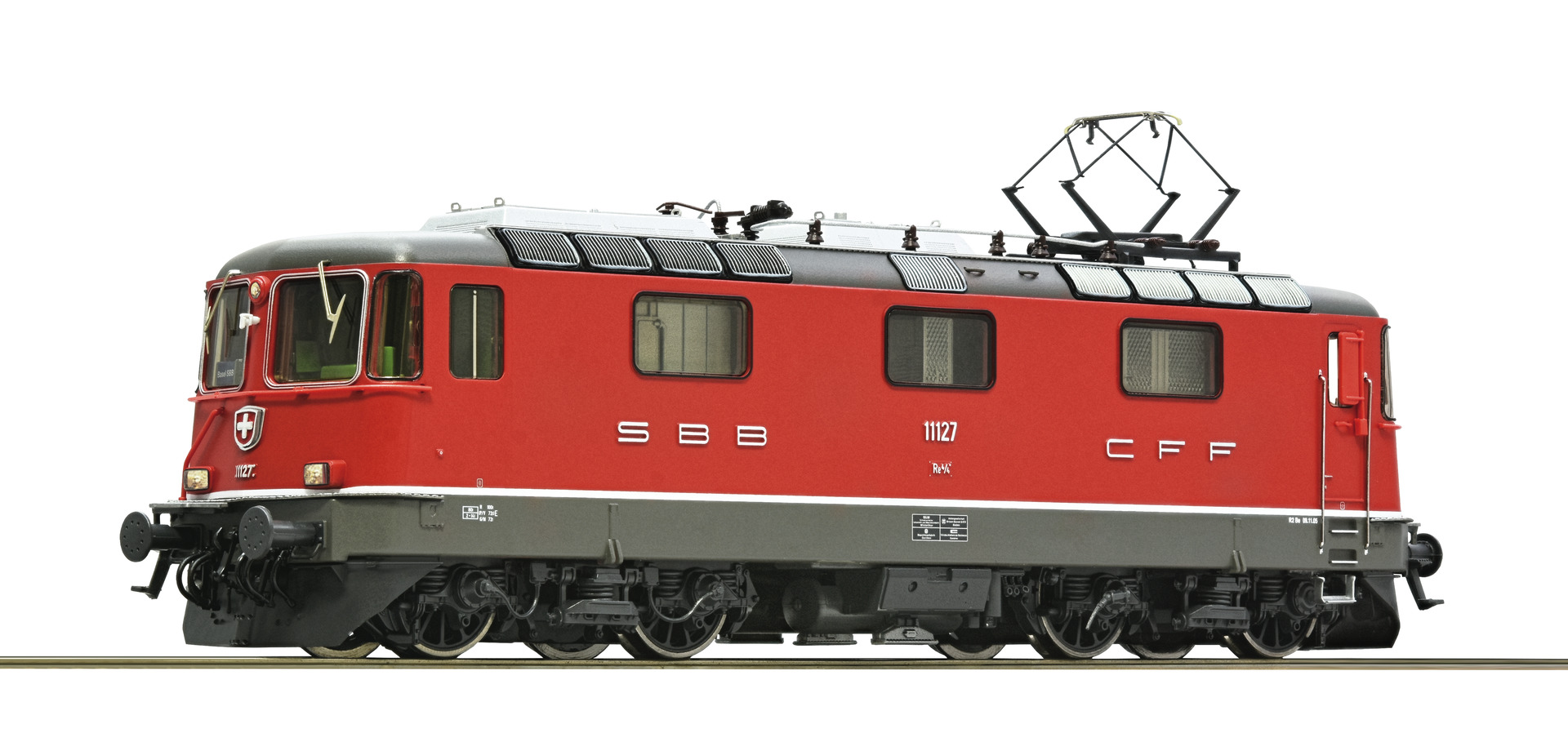

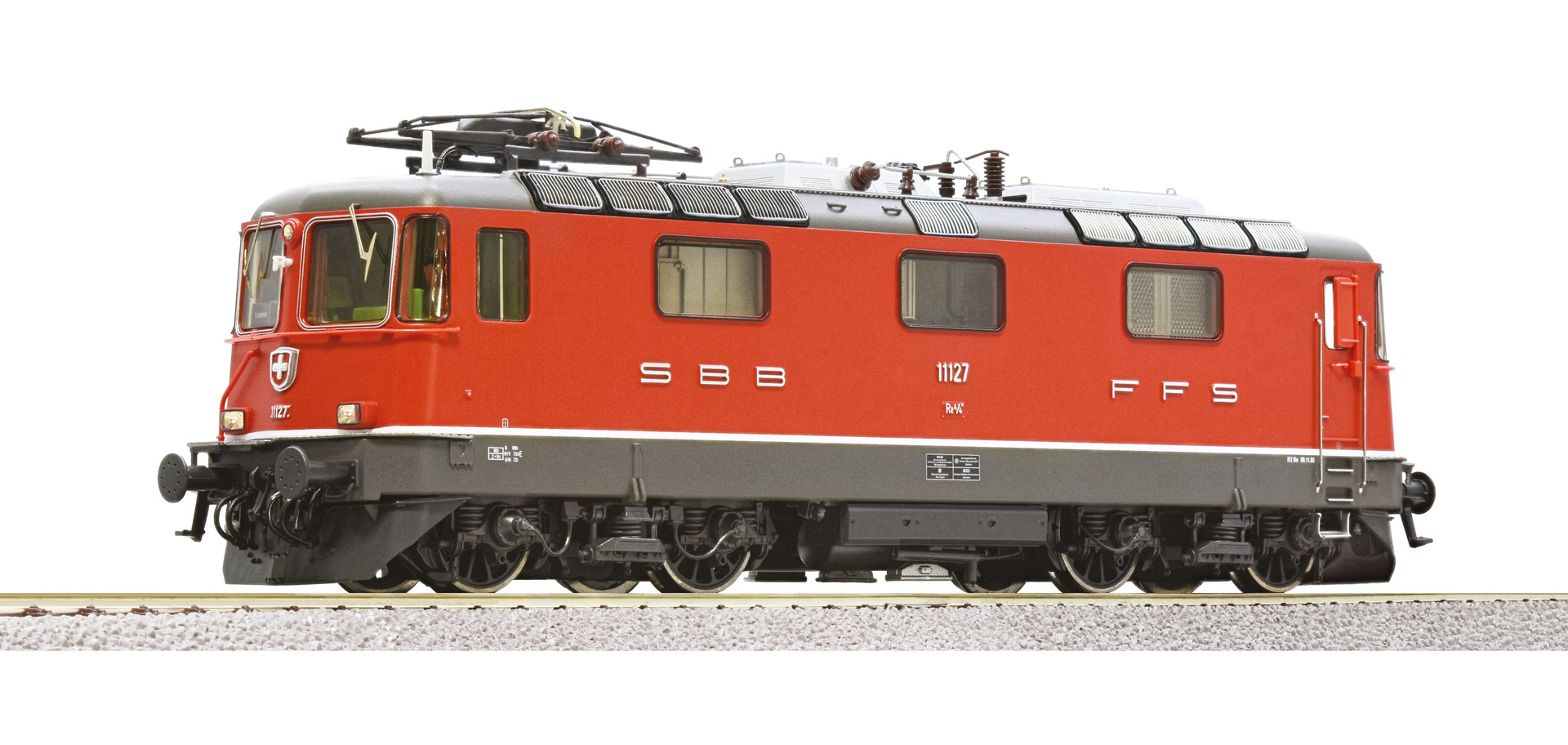

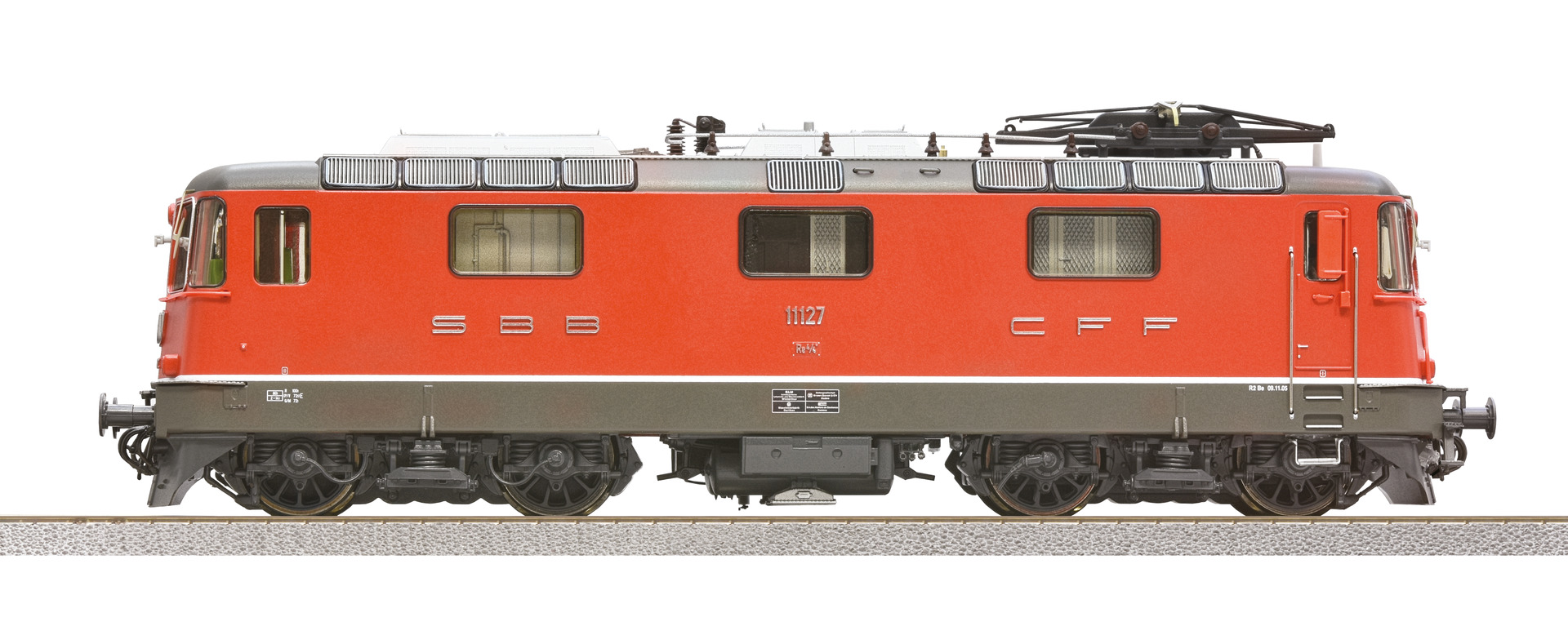

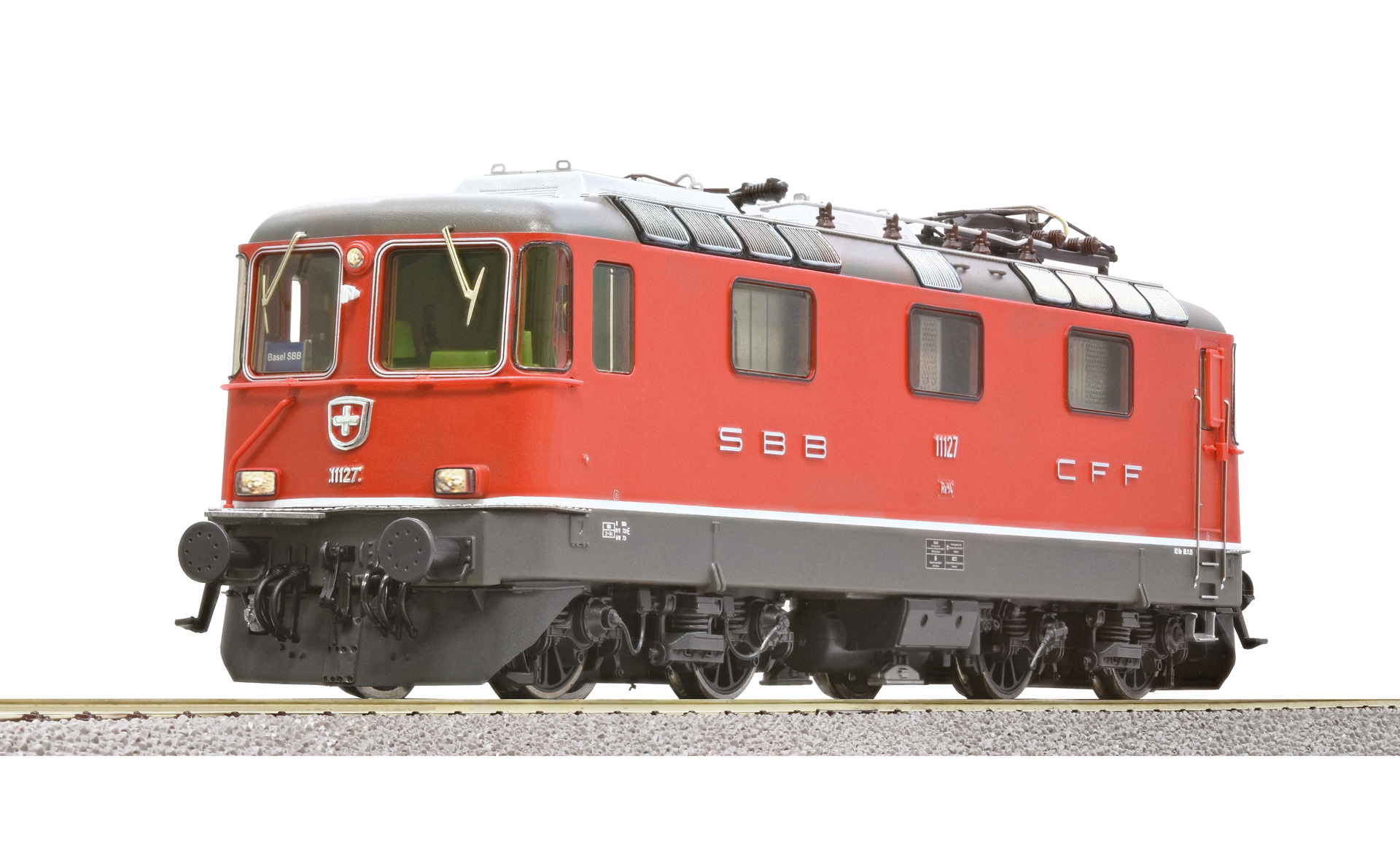

Electric locomotive Re 4/4 II 11127 of the Swiss Federal Railways.
Model factory equipped with DCC sound decoder.
Form variation!
■ 1st construction series of Re 4/4 II
■ Epoch V version without air conditioning unit
■ Equipped with two train destination displays with “Locarno” and “Basel SBB” lettering
■ Design with additional handle rail for UIC access point
■ Etched factory signs
■ Switchable headlight with DIP switch
■ Z21 driver’s cab available
With 277 locomotives delivered, Re 4/4 II is the largest traction unit series in Switzerland to date. The Re 4/4 II was built and put into service for 21 years from 1964 to 1985. The first series – totalling 49 locomotives (11107-11155) – was delivered between January 1967 and November 1968. With a weight of 80 tonnes, its hourly output was 4,700 kW with a maximum speed of 140 km/h.
|
General data |
|
Coupling |
|
NEM shaft 362 with close coupling mechanism |
|
Minimum radius |
|
358 mm |
|
Number of axles with traction tyres |
|
1 |
|
Number of driven axles |
|
4 |
|
Flywheel |
|
yes |
|
Electrical |
|
Interface |
|
Electrical interface for traction units PluX22 |
|
Head light |
|
Light changeover true to the Swiss original. |
|
Interior lighting |
|
Yes |
|
Interior lighting |
|
LED |
|
Interior lighting |
|
Digital switchable |
|
Interior lighting |
|
Driver's cab lighting |
|
Digital decoder |
|
PluX22 |
|
Decoder type |
|
MS450P22 |
|
Sound |
|
yes |
|
LED head light |
|
yes |
|
Additional light function |
|
yes |
|
Buffer capacitor |
|
yes |
|
Measurements |
|
Length over buffer |
|
171 mm |
