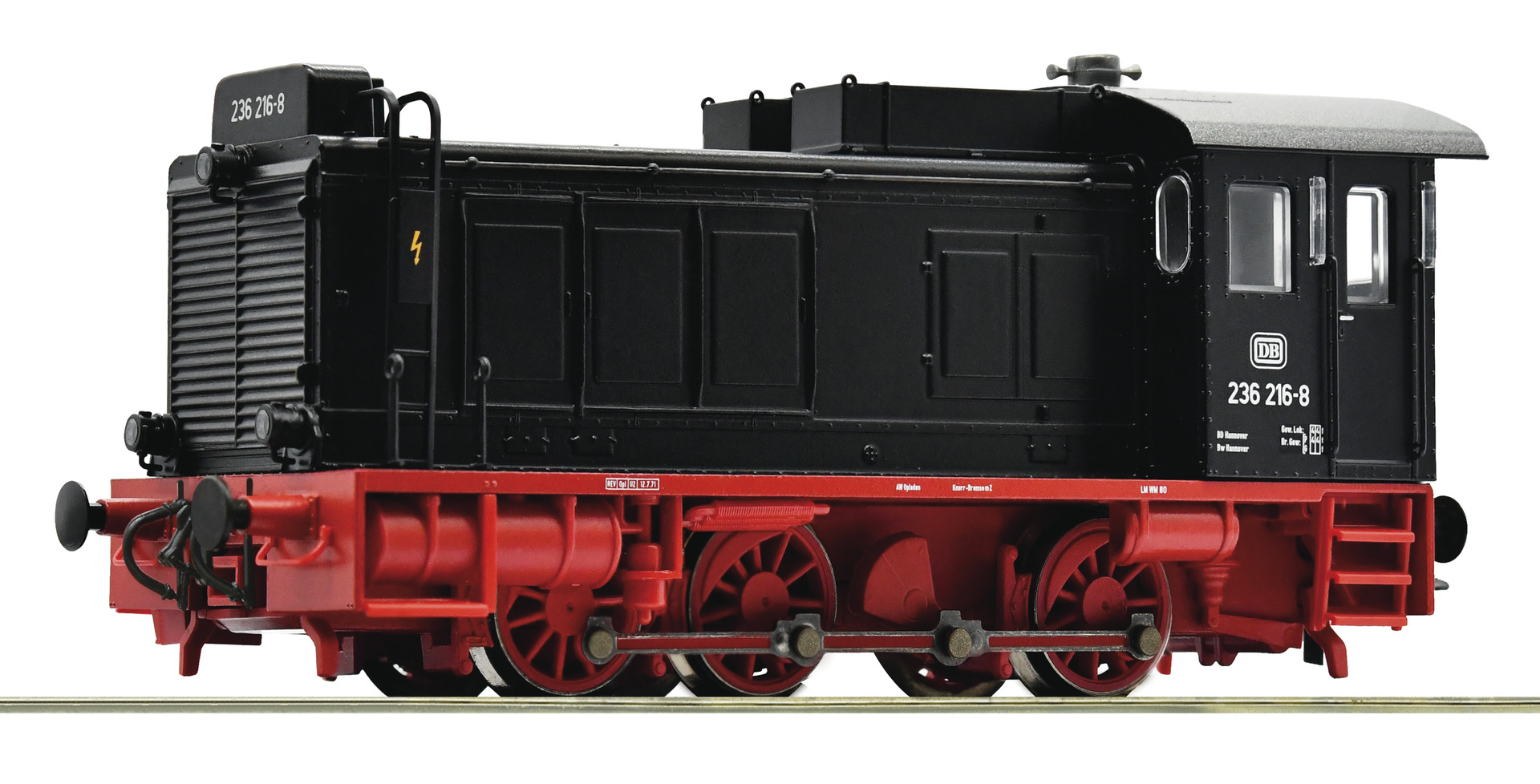

Diesel locomotive 236 216 of the German Federal Railway.
Factory installed dcc sound decoder
■ Version without raised cab
■ Enlarged cooling water expansion tank
■ Additional fuel tanks on the engine hood
Diesel locomotives of the type WR 360 C 14 were originally operated by the German Wehrmacht for use in strategically important locations. At the end of the Second World War, they were put into operation for many civilian uses.
Although the V 36 continued to run, curiously enough, under the same name in both East and West Germany after the war, they were in fact two substantially different versions of the same locomotive: The DB model featured two additional fuel tanks on the engine front end to increase the locomotive’s range. In addition, the DB V 36 was provided with a DB-type front radiator grille and a cooling water expansion tank on the front end. The side fan grilles were closed up using panelling and there was no side maintenance flap on the front end.
The last locomotive of this type was operated by the DB under the designation class 236 until 1981.
General data |
Coupling |
|
NEM shaft 362 with close coupling mechanism |
Minimum radius |
|
358 mm |
Number of axles with traction tyres |
|
1 |
Number of driven axles |
|
3 |
Flywheel |
|
yes |
Electrical |
Interface |
|
Electrical interface for traction units according to NEM 652 standards with plug-in fixture |
Head light |
|
Both sides of the vehicle are equipped with direction dependent triple headlights. |
Digital decoder |
|
NEM 652 |
Decoder type |
|
MS450F |
Sound |
|
yes |
LED head light |
|
yes |
Measurements |
Length over buffer |
|
106 mm |
